DE-RATING FACTORS
| Ambient Temperature |
25°C |
30°C |
35°C |
40°C |
45°C |
50°C |
55°C |
| De-Rating Factor |
1 |
0.96 |
0.91 |
0.87 |
0.82 |
0.76 |
0.71 |
ELECTRICAL CHARACTERISTICS
Current Carrying Capacity
| Nominal Cross Sectional Area mm2 |
Current Rating for Single Cyle Operation Over a Maximum Period of 5 Minutes Amps 100% |
Current Rating for Single Cyle Operation Over a Maximum Period of 5 Minutes Amps 85% |
Current Rating for Single Cyle Operation Over a Maximum Period of 5 Minutes Amps 60% |
Current Rating for Single Cyle Operation Over a Maximum Period of 5 Minutes Amps 35% |
| 10 |
100 |
103 |
108 |
122 |
| 16 |
135 |
145 |
175 |
230 |
| 25 |
180 |
195 |
230 |
300 |
| 35 |
225 |
245 |
290 |
375 |
| 50 |
285 |
305 |
365 |
480 |
| 70 |
355 |
385 |
460 |
600 |
| 95 |
430 |
470 |
560 |
730 |
| 120 |
500 |
540 |
650 |
850 |
| 150 |
580 |
630 |
750 |
980 |
Ambient Air Temperature: 25°C Maximum Conductor Temperature: 85°C The above table is from HD 516 S2:1997 Duty Cycle and Current Carrying Capacity The current carrying capacity of a welding cable depends on the length of the duty cycle. The duty cycle is the length of time during which a loaded current passes through the cable over an operation period of 5 minutes, expressed as a percentage of that period. For example, if the current is flowing for the whole 5 minutes the duty cycle is 100%, and if the current is flowing for 1 minute the duty cycle is 20%. As conductor temperature varies according to the time in use as well as current, ratings shown are given as a guide. The permissible loading of the cable for duty cycles other than those shown in the table can be calculated using the following formula: I = I100 x √100/F Where: I : is the maximum permissible loading current for the required duty cycle. I100 : is the maximum permissible loading current for a duty cycle of 100%. F : is the required duty cycle calculated as a percentage of the 5 minute operation period. Typical guidance values for different welding processes are as follows: Fully automatic welding 100% Semi-automatic welding 65 - 85% Manual Welding 30 - 60% Very infrequent or occasional welding 20%

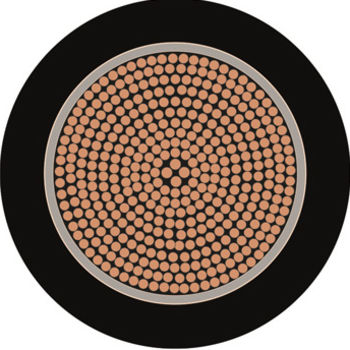

CONDUCTORS
Flexible Copper Conductors for Single Core Cables
| Nominal Cross Sectional Area mm2 |
Maximum Diameter of Wires in Conductor mm |
Maximum Resistance of Conductor at 20ºC ohms/km
Plain Wires
|
| 10 |
0.21 |
1.91 |
| 16 |
021 |
1.21 |
| 25 |
0.21 |
0.78 |
| 35 |
0.21 |
0.554 |
| 50 |
0.21 |
0.386 |
| 70 |
0.21 |
0.272 |
| 95 |
0.21 |
0.206 |
| 120 |
0.51 |
0.161 |
| 150 |
0.51 |
0.129 |
CORE CODES
| Colour |
Black |
Red |
| Code |
E |
RD |
DIMENSIONS
| BATT Part No |
Cores |
Nominal cross sectional area of conductor |
Radial thickness of insulation |
Approx overall diameter |
Weight |
| 19011 |
1 |
16 |
|
9.5 |
210 |
| 19013 |
1 |
25 |
|
11 |
300 |
| 19014 |
1 |
35 |
|
12 |
400 |
| 19015 |
1 |
50 |
|
14 |
560 |
| 19019 |
1 |
70 |
|
16.5 |
780 |
| 19020 |
1 |
95 |
|
18.5 |
1010 |
| 19021 |
1 |
120 |
|
20 |
1250 |
